COFDM Wireless Transmission 10km 20km Digital DVB-T Video Sender

COFDM Wireless Transmission 10km 20km Digital DVB-T Video Sender

Type: HD COFDM transmitter, UAV video transmitter, COFDM video transmitter
Other name: COFDM transmitter, wireless video sender
Modulation: COFDM
Special features: point to point, point to multi point, NLOS, LOS, mobile wireless transmission
High definition: 1080I, 1080P 1920x1080; full HD
Frequency: VHF, UHF, 300MHz to 1000MHz
Distance: 1km, 2km, 3km (vehicle to building); 10km to 40km on UAV
Function: transmitting audio video
Details of COFDM video transmitter
1080P COFDM wireless video transmitter is a mini 1080i full HD video transmitter.
COFDM wireless video transmitter is with the core of mobile communication technology COFDM (multi-carrier modulation technique), which can transmit high quality and stable full-HD digital video signal in high speed mobile condition and heavy building blocks.
COFDM HD video transmitter is with H.264 encoding format, stereo balance audio input and narrowband.

COFDM Technique Advantages

1. Strong interference:COFDM wireless transmitter is effectively against the multipath interference of signal waveform with the COFDM modulation. When the frequency selective fading occurs due to multipath transmission in the channel, only the subcarriers in the band depression and the signal carried by them are affected. The other subcarriers are not affected. Therefore, the overall bit error rate of the system is lower.
2. Anti-multipath fading: COFDM wireless audio video transmitter is effectively against the interference with the multi-carrier technique (COFDM). Compared to the single carrier, multi-carrier inherently resistant to time delay and has strong multipath capability. With joint coding of subcarriers & frequency diversity of the channel, the system’s performance is improved. Therefore, COFDM wireless system is suitable for multi-path environment and fading channel high-speed audio video data transmission.
3. LOS & NLOS operation: with strong penetration, strong diffraction & strong anti-interference, COFDM wireless system is suitable for high-speed mobile wireless transmission in NLOS &LOS operation without servo stability control assistance, such as on UAV to mobile vehicle, uav to groun station, UAV to vessle...

Warranty

1. Twelve months free warranty for equipment
2. Three months for components
3. Replacement parts will be charged after one year

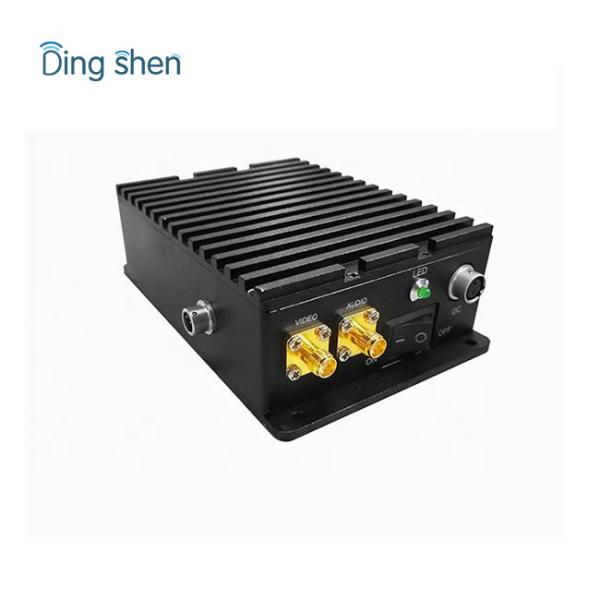

COFDM Wireless Transmission 10km 20km Digital DVB-T Video Sender Images
